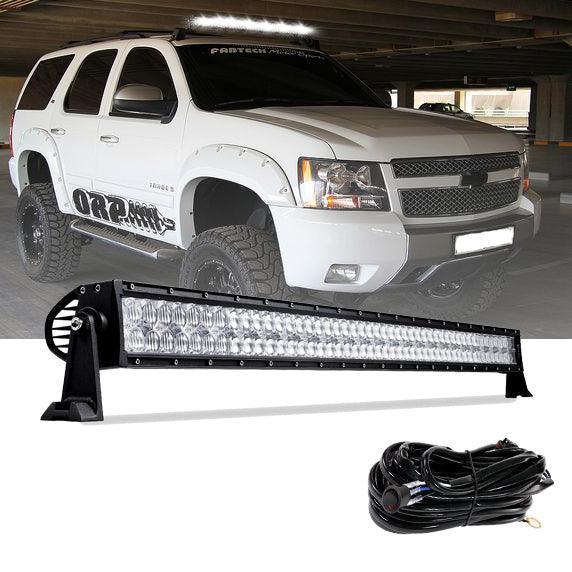

22 Inch-52 Inch 5D Series Straight/Curved Combo Beam Double Row LED Light Bar for Chevy Tahoe

Description

Introduction:
Adopting evolutional 5D optic tech (Dual reflector cup + projector lens) be used for the project more effective light to faraway and surround areas without foggy light/dark zone.
Spot & flood beam integrated in a light bar for optimal light spread. Project light to extreme distance & keep bright surround lighting in close range.
Black extruded aluminum profile, high transmission PC lens, 360 angle rotating metal side brackets.
IP67 rated waterproof & dustproof, durable enough to withstand any harsh environments, about 50,000 hours lifetime.
Specifications:
SIZE
POWER
LUMENS
22″ Straight
25*4.8*3.5(with bracket) 22*3*3.5(without bracket)
120W-40pcs*3W
12000LM
22″ Curved
25*4.8*3.5(with bracket) 22*3*3.5(without bracket)
120W-40pcs*3W
12000LM
32″ Straight
35*4.8*3.5(with bracket) 32*3*3.5(without bracket)
180W-60pcs*3W
18000LM
32″ Curved
35*4.8*3.5(with bracket) 32*3*3.5(without bracket)
180W-60pcs*3W
18000LM
42″ Straight
46*4.8*3.5(with bracket) 43*3*3.5(without bracket)
240W-80pcs*3W
24000LM
42″ Curved
46*4.8*3.5(with bracket) 43*3*3.5(without bracket)
240W-80pcs*3W
24000LM
50″ Straight
52.3*5.1*3.5(with bracket) 50*3.2*3.5(without bracket)
288W-96pcs*3W
28800LM
50″ Curved
52.3*5.1*3.5(with bracket) 50*3.2*3.5(without bracket)
288W-96pcs*3W
28800LM
52″ Straight
55*4.8*3.5(with bracket) 52*3*3.5(without bracket)
300W-100pcs*3W
30000LM
52″ Curved
55*4.8*3.5(with bracket) 52*3*3.5(without bracket)
300W-100pcs*3W
30000LM
LED Type: 2525 chips
Pcs/Set: 1
Beam Type: Spot(30 degree) & Flood(60 degree) Combo
Color temperature: 6500K Cool White
Operating Voltage: 9-32V
Material: Black Diecast aluminum alloy housing
Mounting Bracket: Diecast aluminum alloy
Waterproof rate: IP67
Working Temperature:-40~85 degree Celsius
Lifespan: 50,000 Hours
Wide range of applications:
Off-Road vehicles-ATVs, SUV, truck, Fork lift, trains, boat;
Specialized vehicles-Fire engine, police cars, rescue vehicle, Communication vehicle, military command vehicle etc;
Engineering vehicles-Excavator, dozer, road roller, bulldozer, crane and mining truck etc.
Package Included:
LED light bar *1
Side brackets(rubber pads included) *2
Wiring harness kit with relay and fuse *1
Necessary mounting hardware like bolts,washers,nuts included

Available configurations: Shape: Straight, Curved; Size: 22″-120W, 32″-180W, 42″-240W, 50″-288W, 52″-300W
Please ask us to confirm the exact configuration before ordering.
