Description
5D Series light bar
Dual-row LED light bar combining a focused spot beam with wider flood illumination. Check the physical dimensions and mounting clearance before ordering.
Available configurations
- Straight / 22"-120W
- Straight / 32"-180W
- Straight / 42"-240W
- Straight / 50"-288W
- Straight / 52"-300W
- Curved / 22"-120W
- Curved / 32"-180W
- Curved / 42"-240W
- Curved / 50"-288W
- Curved / 52"-300W
Select the required configuration above. Price and product image follow your selection; unavailable configurations cannot be ordered.

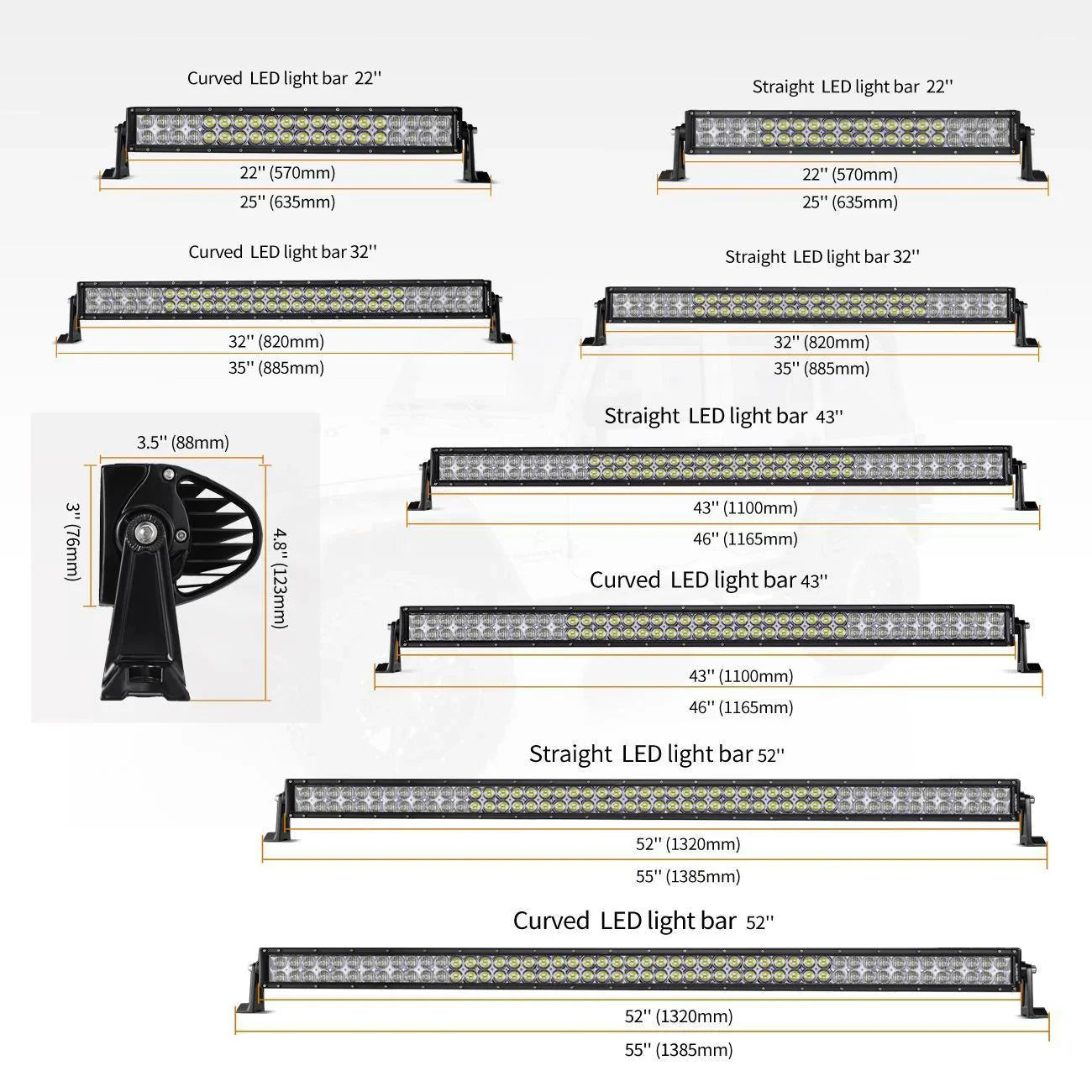

Specifications by length
| Nominal length | Rated power | Rated output | With brackets (inches) | Without brackets (inches) |
|---|---|---|---|---|
| 22 inch | 120 W | 12000 lm | 25 × 4.8 × 3.5 | 22 × 3 × 3.5 |
| 32 inch | 180 W | 18000 lm | 35 × 4.8 × 3.5 | 32 × 3 × 3.5 |
| 42 inch | 240 W | 24000 lm | 46 × 4.8 × 3.5 | 43 × 3 × 3.5 |
| 50 inch | 288 W | 28800 lm | 52.3 × 5.1 × 3.5 | 50 × 3.2 × 3.5 |
| 52 inch | 300 W | 30000 lm | 55 × 4.8 × 3.5 | 52 × 3 × 3.5 |
Specifications
| Specification | Details |
|---|---|
| LED type | 2525 |
| Beam | 30° spot + 60° flood |
| Light colour | 6500 K white |
| Input voltage | 9–32 V |
| Ingress protection | IP67 |
| Housing | Black die-cast aluminium |
| Operating temperature | −40 to +85 °C |
Mounting

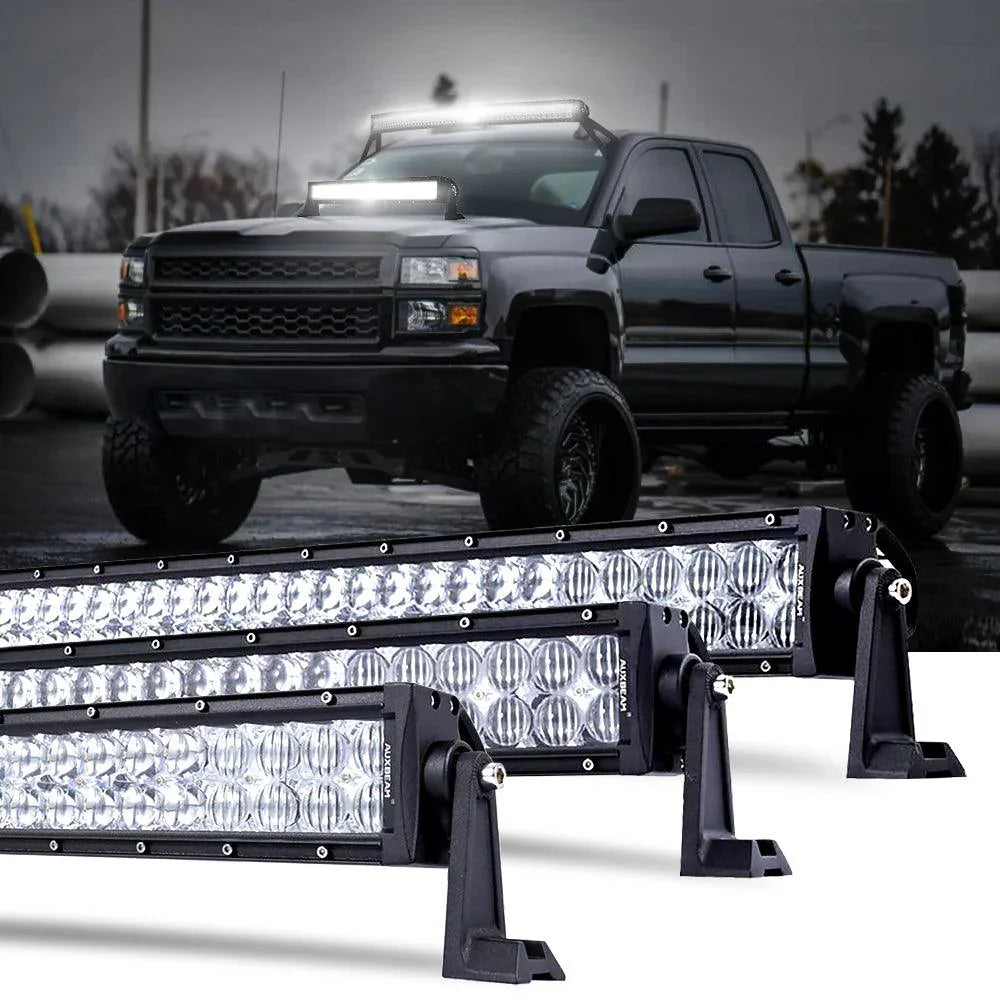

Vehicle names indicate the suggested application. This package uses side brackets; dedicated vehicle mounting brackets are not listed as included. Check fit and clearance for the selected length.
Package contents
- 1 × light bar in the selected size and shape
- 2 × side brackets with rubber pads
- 1 × wiring harness with relay and fuse
- Mounting hardware
Order quantity
Quantity 1 orders one package in the selected configuration, with the contents listed above. Increase the order quantity to buy additional complete packages.
Fitment help
Contact TerraForge4x4 at info@terraforge4x4.com with your vehicle model, year and mounting position.
Road-use notice
For off-road use unless applicable road approval is explicitly documented. Check local regulations before use on public roads.
