RAY-L Series 7/9 Inch Dual DRL Offroad LED Driving Lights — 7 Inch / without Covers

Description

A pair of 7-inch Auxbeam RAY-L driving lights with a white spot beam and separately wired white or amber DRL lighting. This listing is for the 7-inch set without optional covers.

Lighting modes

• White main beam
• White or amber DRL
• White main beam combined with white or amber DRL

Specifications

• Quantity: 2 lights per set
• Auxbeam SKU: ZD000857
• Size: 7 inch
• Beam pattern: spot
• Input voltage: 10–30 V DC
• Aluminium housing and polycarbonate lens
• Manufacturer-rated protection: IP68

The supplied wiring harness uses a 12 V relay. A suitable replacement relay is required for 24 V installation. The main beam remains white; the amber DRL does not turn the main beam amber.

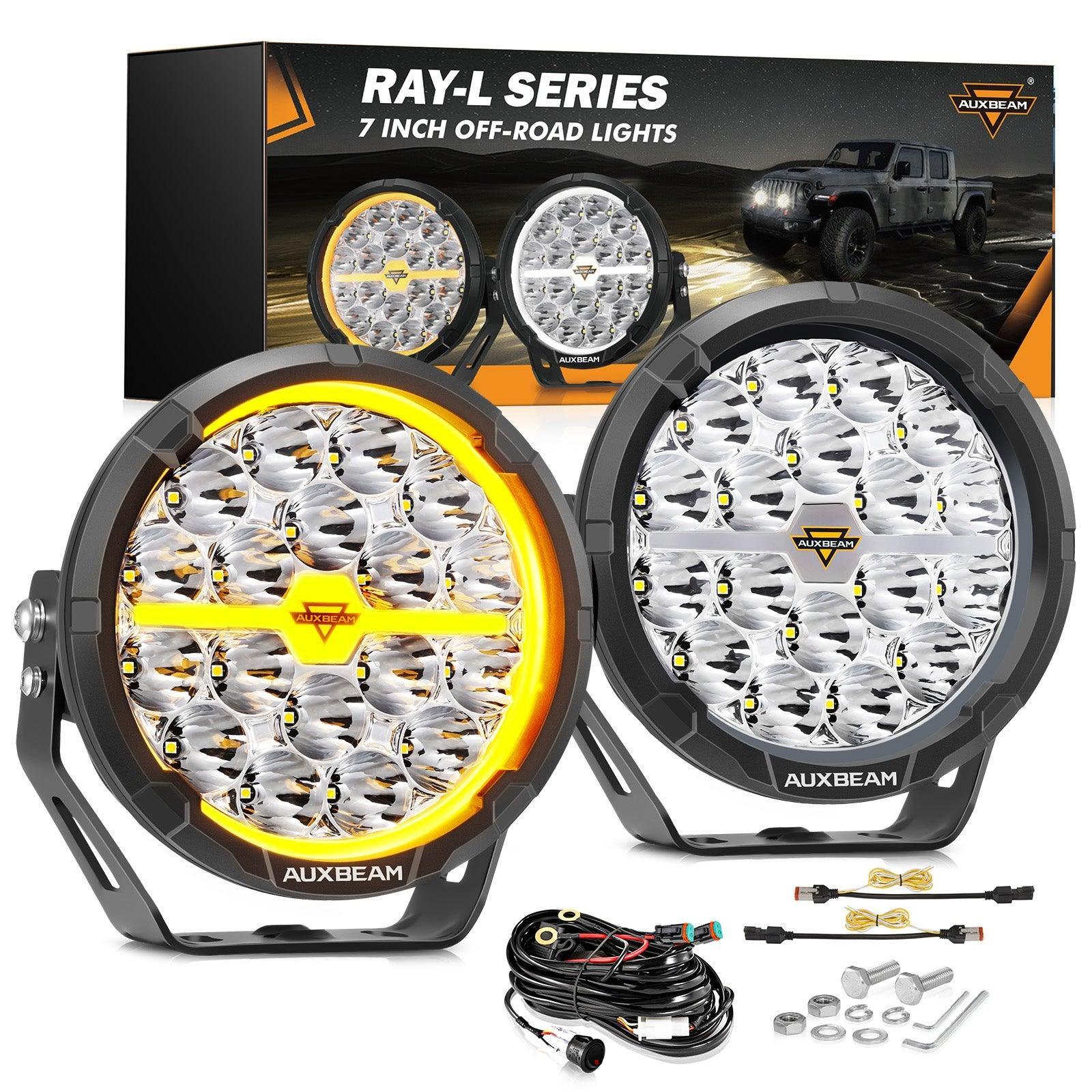

Included

• 2 LED driving lights with 4-pin DT connectors
• 2 adapter leads with separate white and amber DRL wires
• Wiring harness
• Mounting hardware and manual

Road-use notice: For off-road use unless applicable road approval is explicitly documented. Always check local regulations before installation and use on public roads.
