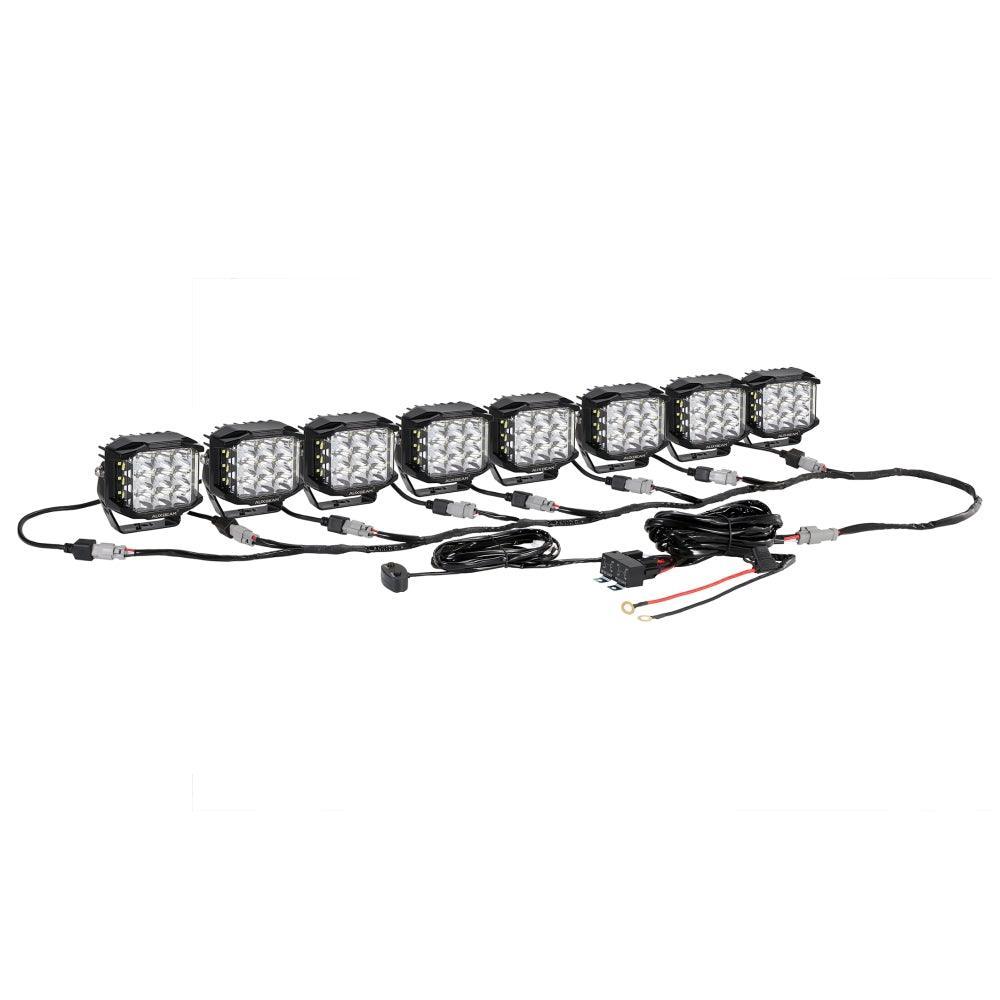

8-LED Pod Light Power Wiring Harness Kit with 3 PIN DT Plug

Description

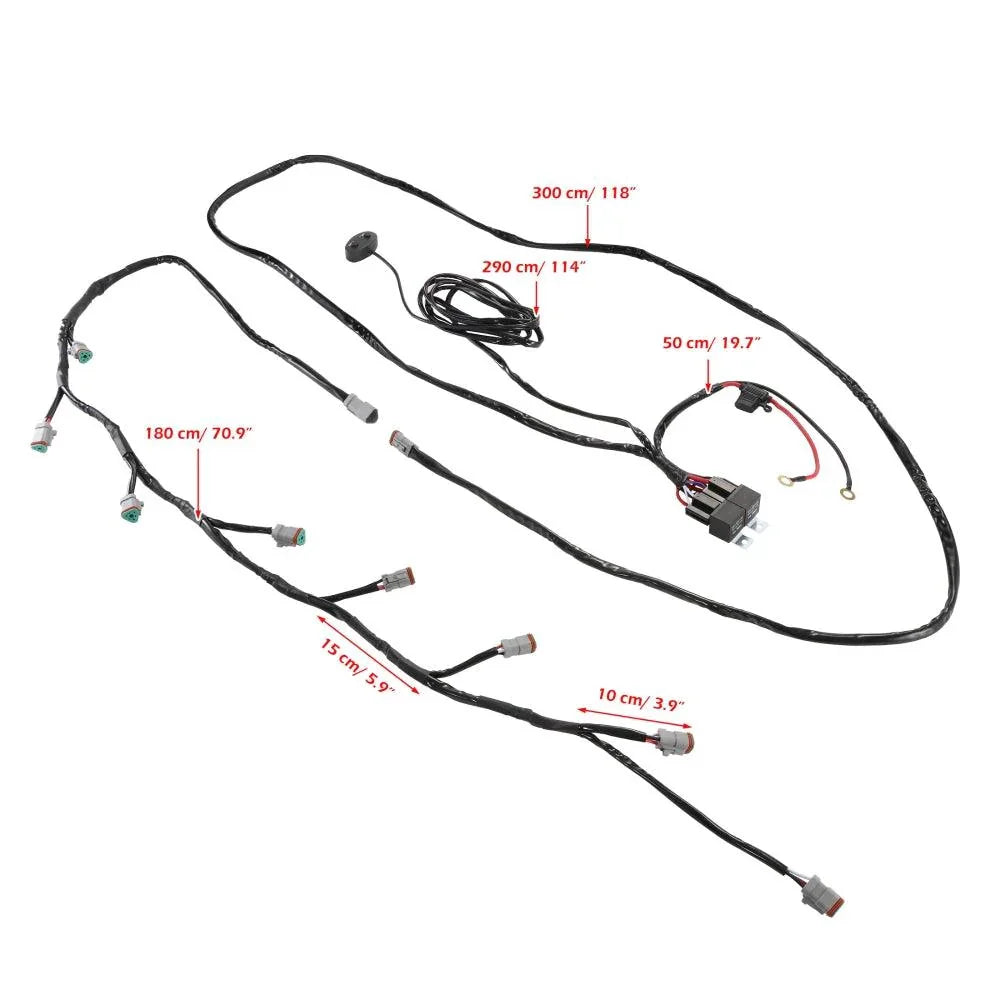

Recommend Fit for Our Pod Light SKU: 8-Pod Lights (A maximum of eight pod lights can be installed): XP-ULTRA Series : ZD000753/ZD000879/ZD000880/ZD000881 V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850/ZD000897 V-ULTRA Series: ZD000820/ZD000821/ZD000892/ZD000891 Other Product: ZD000752 6-Pod Lights (A maximum of six pod lights can be installed): V-MAX Series: ZD000869/ZD000870/ZD000904 V-ULTRA Series: ZD000889/ZD000890 Other Product: ZD000617/ZD000484/ZD000696/ZD000697 Features: Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 8 in 1 3PIN DT Plug 50A fuse and 60A relay. Built-in blade fuse to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system. Load Power: The wiring harness is included in a 3.5-meter 10AWG（5mm²） main wire&18AWG（0.75 mm²）DRL wire and a 3 PIN DT-adapter plug with a total length of 2 meters，it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A（72W）in the 12V. Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 8-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle. Tips: We recommend professional installation of LED wiring harness kits, please let professional installers connect the wiring harness kits. Specification: Connect Number Light: Max 8 Pods Wire Length: 3.5M Extension Cord +2M Connect Cord Switch Wire Length: 3M Install Pod Distance: 15cm DT-plug Adapter Length: 10cm DT-plug Connector: 3 PIN Wire Size: 10AWG National Standard (DRL 18AWG) Wire Material: 5mm² Copper Wire (DRL 0.75mm²) Working Voltage: 12V(Replaceable 24V relay) Leads Power: Max 480W(current 40A) (DRL 72W&6A) Fuse Size: 50A Relay Size: 60A Packing Included: 1 x 8-Pod Power Harness (Pod lights not included)

Road-use notice: For off-road use unless applicable road approval is explicitly documented. Always check the regulations in your country before installation and use on public roads.
