S3 Pro Series 12V Dual Decoder LED Headlight Bulbs — 120W 24000LM

Description

12V VEHICLE COMPATIBILITY

It contains a detachable decoder compatible with 12V cars, not 24V cars.

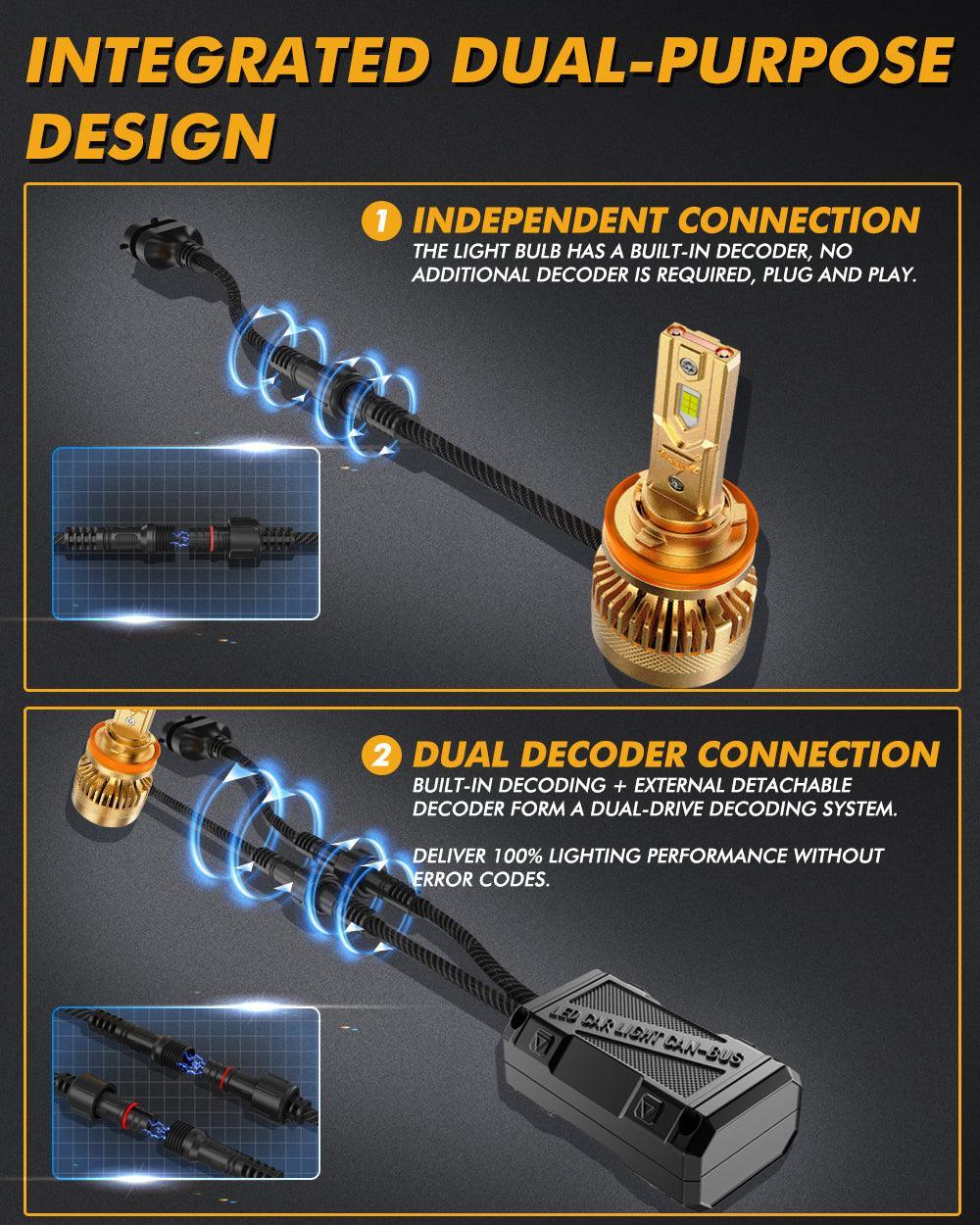

INSTALLATION & DUAL DECODER

Users can choose an independent connection or dual decoder connection mode according to their needs to meet different driving scenarios.

Independent connection: The light bulb has a built-in decoder, no additional decoder is required, plug and play.

Dual decoder connection: Built-in decoding + external detachable decoder form a dual-drive decoding system. Compatibility varies by vehicle; check fitment before ordering.

H7 fitment: H7 sockets need extra retainer holder adapters for some vehicles, like VW, KIA, Hyundai, BMW, BENZ, etc. Please check before purchasing.

LIGHT OUTPUT

120W and 24,000 lm per pair, according to the manufacturer, brighter and farther lighting range. Equipped with 12cps high-power 3570CSP LED chips, 7X brighter than halogen bulbs for superior night visibility.

BEAM PATTERN

Adopts 1:1 halogen beam design to achieve optimal beam coverage without dark spots. Ultra-thin chip pitch and 1:1 beam pattern technology provide a super-focused beam, solving the problem of uneven light focusing without dazzling oncoming vehicles.

COOLING

The overall aviation aluminum body + double cooling copper tube + 15,000RPM turbo cooling fan can quickly and effectively dissipate the heat generated by the chip, extending the life of the lamp up to 50,000 hours.

SPECIFICATIONS

• LED type: 3570CSP
• Power: 120W per two-bulb set
• Manufacturer-rated light output: 24,000 lm per two-bulb set
• LEDs per bulb: 12 (single beam) / 24 (high and low beam)
• Operating voltage: 9–16V — for 12V vehicles
• Colour temperature: 6500K cool white
• Housing: 6063 aluminium
• Cooling: fan and copper cooling tubes
• Manufacturer-rated lifespan: 50,000 hours
• Waterproof rating: IP68

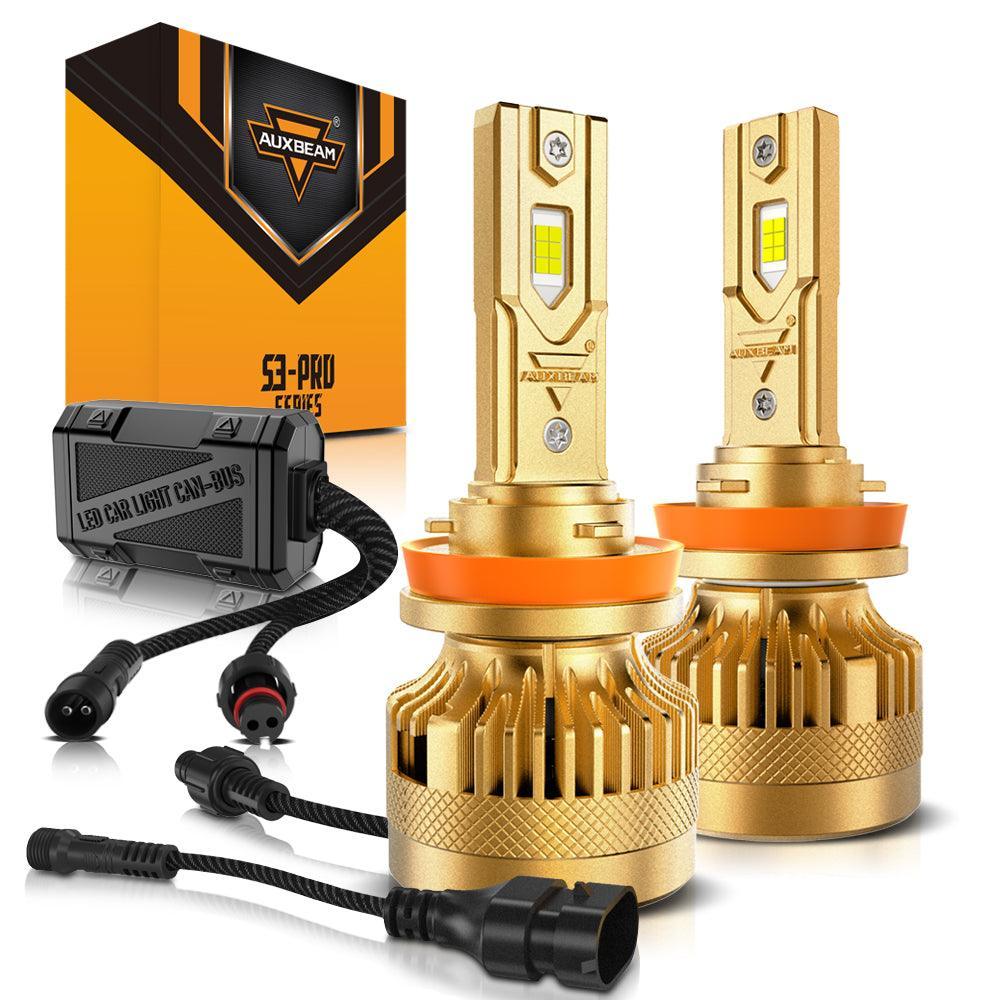

FITTINGS & PACKAGE CONTENTS

Two-bulb sets:

• H11/H9/H8
• 9005/HB3/H10
• 9006/HB4
• H4/HB2/9003
• H7
• 9012/HIR2

Four-bulb bundles:

• 9005+9006
• 9005+H11
• H11+H11

A detachable decoder is included. The selected option determines the fitting and number of bulbs supplied.

CHECK BEFORE ORDERING

Check your vehicle voltage, original bulb fitting and available space inside the headlight housing. Contact TerraForge4x4 with your vehicle make, model and year if you need help choosing a fitting.

Road-use notice: For off-road use unless applicable road approval is explicitly documented. Always check the regulations in your country before installation and use on public roads.
